The Comprehensive Guide to Aluminum Gravity Die Casting: Process, Advantages, and Automotive Applications
2026-04-22
Shengxu Parts
42
Process of Aluminum Gravity Die Casting
The aluminum gravity die casting process is a meticulous process involving several steps. Here's a detailed breakdown:
Design and Mold Preparation
The first step is designing the mold using CAD programs. This ensures precise dimensions and design specifications.
- Materials: The mold is typically made of steel or iron to provide durability and accuracy.
- Pre-heating: Pre-heating the mold is crucial to ensure smooth metal flow and prevent thermal shock.
- Cleaning: Thorough cleaning removes any debris or residue from previous casts, ensuring a clean surface for the molten aluminum.
Molten Aluminum Preparation
High-quality aluminum ingots are carefully melted and treated to remove impurities.
- Alloy Composition: Verifying the alloy composition ensures consistency.
- Melting Temperature: Molten aluminum is prepared at temperatures between 650-750C.
Pouring the Molten Aluminum
The molten aluminum is poured into the mold cavity.
- Gravity: Gravity ensures that the metal fills the mold completely, minimizing turbulence and air pockets.
- Venting: Proper venting is essential to allow air to escape and prevent porosity.
Solidification and Cooling
Controlled cooling is vital to prevent defects and ensure uniform solidification.
- Riser Bars: Riser bars are used to compensate for metal shrinkage during solidification.
- Mold Design: Proper mold design plays a crucial role in ensuring the uniform cooling and solidification of the casting.
Ejection and Part Removal
Once the molten aluminum solidifies, the mold is opened.
- Ejector Pins: Ejector pins help remove the casting with minimal damage.
- Excess Material Removal: Any excess material is trimmed, and the casting is prepared for further processing.
Finishing Processes
Post-casting treatments enhance the quality and finish of the components.
- Deburring: Deburring removes sharp edges, while machining ensures tight tolerances.
- Surface Treatments: Surface treatments like anodizing and powder coating improve durability and aesthetics.
Advantages of Aluminum Gravity Die Casting
Aluminum gravity die casting offers several distinct advantages, making it an ideal choice for automotive manufacturers.
High Dimensional Accuracy
Components produced using gravity die casting have precise dimensions and excellent surface finishes.
- This makes them ideal for parts that require tight tolerances and precise fitment, such as engine blocks and transmission cases.
Superior Strength and Density
Gravity die casting produces parts with excellent strength and density due to controlled cooling and the absence of air entrapment.
- This ensures that automotive components are robust and reliable.
Cost-Effective for Medium-to-High Production Runs
The reusable nature of steel molds makes gravity die casting cost-effective for medium-to-high production volumes.
- Initial tooling costs are offset by long-term savings from reusability and consistent quality.
Enhanced Mechanical Properties
Components produced through gravity die casting exhibit better mechanical properties compared to sand-cast parts.
- The controlled cooling process enhances strength and durability, making them suitable for critical applications in the automotive industry.
Eco-Friendly and Less Material Waste
Gravity die casting produces less waste compared to other casting methods, such as sand casting.
- The efficient use of resources and the ability to reuse molds make it an environmentally friendly option.
Improved Production Speed
Rapid cooling in metal molds leads to faster production cycles and quick turnaround times.
- This makes it a practical choice for projects requiring quick delivery without sacrificing quality.
Aluminum Gravity Die Casting Applications in Automotive Industry
Automotive Engine Components
Engine blocks, cylinder heads, and valve bodies are common applications for gravity die casting.
- These components benefit from the high dimensional accuracy and strength provided by gravity casting.
Transmission Cases and Housings
Transmission cases, gearboxes, and housings are produced using gravity die casting due to their complex shapes and precise tolerances.
- These components are crucial for reliable transmission performance and smooth operation.
Suspension Parts
Suspension arms, brackets, and housing are often gravity die cast to ensure high strength and consistency.
- These parts are critical for vehicle stability and ride quality.

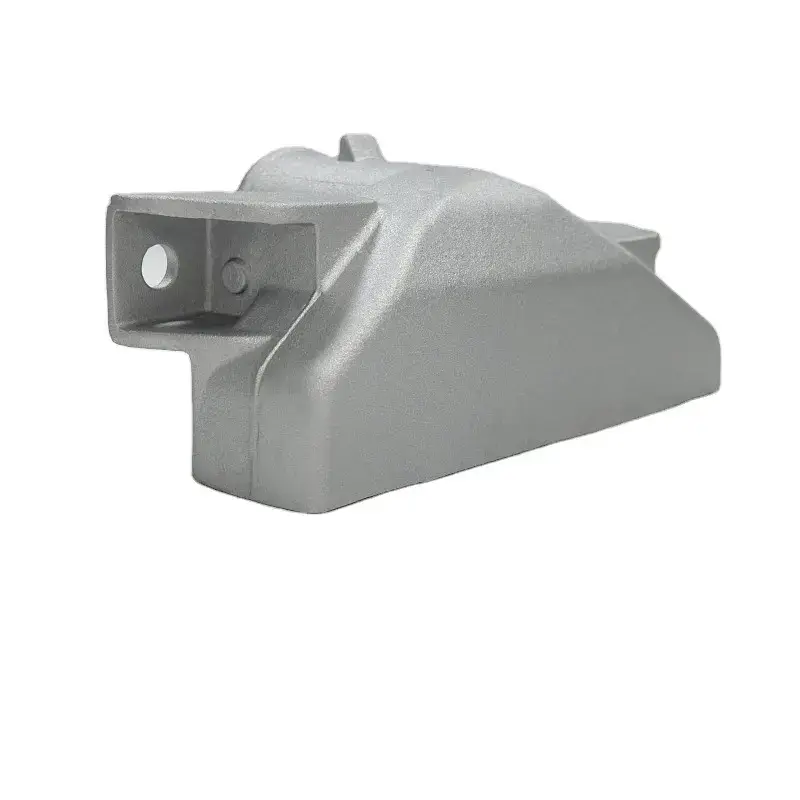

Brackets and Housings
Various structural and functional brackets, such as engine mount and chassis supports, are typically gravity die cast.
- These parts must be durable, lightweight, and precisely engineered to meet design requirements.
Best Practices and Quality Control in Automotive Components
Quality control is paramount in aluminum gravity die casting, especially for automotive components. Key best practices include:
Mold Design Optimization
- Gating System Design: Proper gating system design ensures smooth and even metal flow.
- Cooling Channels: Strategic placement of cooling channels and adequate venting prevent air entrapment.
- Draft Angles: Draft angles of 2-3 are essential for easy part removal.
Temperature Management
- Pre-heating: Pre-heating the mold to 200-300C maintains consistent metal flow and prevents thermal shock.
- Consistent Pouring Temperature: Ensuring consistent pouring temperatures (650-750C) prevents variations in part quality.
Quality Assurance
- X-ray Inspection: X-ray inspection, pressure testing, and dimensional verification are used to detect common defects such as porosity and shrinkage.
- Surface Finishing: Surface finishing options range from as-cast finishes to post-processing treatments like machining, coating, and painting.
Aluminum Alloy Options for Automotive Parts
Several aluminum alloys are commonly used in gravity die casting for automotive applications:
Aluminum Alloy A356
- Properties: Known for excellent fluidity and corrosion resistance, ideal for parts requiring precise dimensions and fluidity.
Aluminum Alloy A357
- Properties: Noted for its higher strength properties, suitable for parts requiring mechanical strength.
Aluminum Alloy A380
- Properties: Ideal for applications requiring both strength and high fluidity.
These alloys are chosen based on specific mechanical requirements, corrosion resistance, and fluidity demands.
Future Trends in Aluminum Gravity Die Casting
The future of aluminum gravity die casting looks promising, with several advancements on the horizon:
Material Innovations
- Development: Developing new high-strength aluminum alloys that can withstand higher temperatures and pressures.
Automation Enhancements
- Automation: Increasing automation in the production process to enhance efficiency and reduce human error.
Sustainability Focus
- Sustainability: Emphasizing eco-friendly practices and reducing material waste, aligning with global sustainability goals.
Advanced Inspection Techniques
- : Utilizing advanced X-ray and other non-destructive testing techniques to ensure highest quality standards.
